P700 Rocker switch panel /relay help

[Sheepdog]

Yup welcome to forum

Since I’m using my secondary fuse box for fused power where’s the best place to run the #2 wire off the rocker switch. Thanks again for all your help



[Admin]



[ohanacreek]

Since I’m using my secondary fuse box for fused power where’s the best place to run the #2 wire off the rocker switch. Thanks again for all your help

A separate fuse from the relay, probably won’t need much for the switch to control the relay maybe a 2amp fuse at most, but if it’s split going to the other switch too then you’ll need to account for what it will draw.



[Sheepdog]

A separate fuse from the relay, probably won’t need much for the switch to control the relay maybe a 2amp fuse at most, but if it’s split going to the other switch too then you’ll need to account for what it will draw.

A separate fuse from the relay, probably won’t need much for the switch to control the relay maybe a 2amp fuse at most, but if it’s split going to the other switch too then you’ll need to account for what it will draw.

Will there be a spot on the relay that’s not being used? Or do I double up one of the wires that’s already going to the relay?



[ohanacreek]

Will there be a spot on the relay that’s not being used? Or do I double up one of the wires that’s already going to the relay?

???? No....



[Sheepdog]

???? No....

Ok so I still have to send power to #2 on the switch from a separate source. Should I run a seperate wire from my auxiliary fuse box to #2



[ohanacreek]

Ok so I still have to send power to #2 on the switch from a separate source. Should I run a seperate wire from my auxiliary fuse box to #2

Yes



[Sheepdog]

Yes

Ok great thank you again for all the help! I just want to make sure I get it right and not burn down my Honda.. lol



[Sheepdog]

Ok great thank you again for all the help! I just want to make sure I get it right and not burn down my Honda.. lol

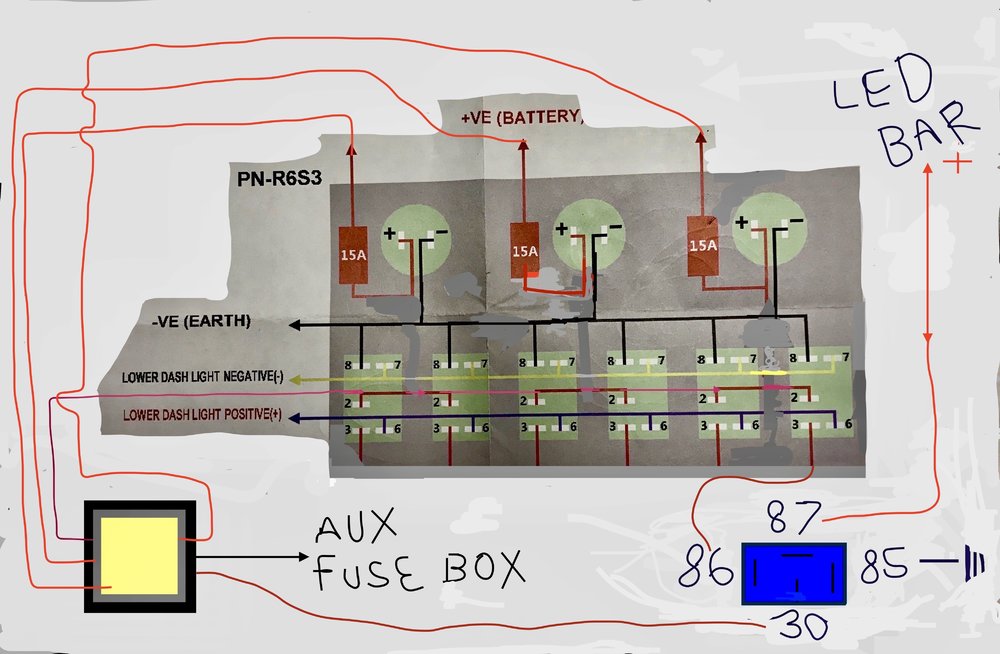

Made up a diagram from our conversation. When u get time can u check it out to make sure it’s correct. Thanks



[ohanacreek]

Made up a diagram from our conversation. When u get time can u check it out to make sure it’s correct. Thanks

View attachment 91526

That looks right



[Sheepdog]

We have success!! Switch panel works like it should!! Thanks again!
