2020 pioneer 1000-5 Inner Fender part?

[Scrappapotamus]

Google search Honda Pioneer 1000-5 aftermarket skid plates. There are several brands that have tabs that wrap upwards at the front footwell area. If I were you, I would dedicate time to browse various companies who make aftermarket parts for your machine. Explore these products and compare them to others you encounter in your search. Some of these are more reasonably priced and some are much more expensive, like everything else in life. Paying a ton for something doesn't mean it's a good product, but the sky is the limit depending on what you're looking for. Once you find something you like, google product reviews on the web and YouTube. Too many resources out there if you put the effort forth. You can also query anyone here for their opinion once you narrow down your choices. These machines weren't made to bulldoze down saplings but there are numerous machines purpose built to do so. Good luck on your query and keep us informed of your progress



[Admin]



[Ohio4x4]

Doesn’t seem like the common skid plates protect this area. Do you have something to protect the fender well?

They don't. The skid plate is just additional coverage so nothing comes up through the floor. The wheel wells are a whole other mess. I've cut out cardboard a few times to attempt to make some hillbilly guards but there are just to many angles for my fab skills to make it out of one piece. I'm my experience more pieces is just more s*** to fall off. satv makes some they're on my parts list for the pioneer reconstruction.



[Scamih]

They don't. The skid plate is just additional coverage so nothing comes up through the floor. The wheel wells are a whole other mess. I've cut out cardboard a few times to attempt to make some hillbilly guards but there are just to many angles for my fab skills to make it out of one piece. I'm my experience more pieces is just more s*** to fall off. satv makes some they're on my parts list for the pioneer reconstruction.

I’m thinking the satv ones don’t protect the place where your likely to wedge a stick like I did. There are some good examples on here on fabbing 3 or 4 pieces. I’ve got a retired buddy that’s good at heating and bending the heavy plastic. I’m going to replace floor, put on satv skid plate, then homade fender wall guards. I’ll send pics when done. In the meantime if anyone else has good fender well guard pictures or examples not already on the sight please post them. Thank you.



[ODAMO]

Doesn’t seem like the common skid plates protect this area. Do you have something to protect the fender well?

You could add the 22+ fender liners. They are fairly strong plastic that are smooth and covers the nooks and crannies that can catch the end of a stick and deflect it



[Scamih]

You could add the 22+ fender liners. They are fairly strong plastic that are smooth and covers the nooks and crannies that can catch the end of a stick and deflect it
[/QUOTE

You could add the 22+ fender liners. They are fairly strong plastic that are smooth and covers the nooks and crannies that can catch the end of a stick and deflect it

I like that option, thanks . I found them pretty cheap. Have a buddy with a 22 sending me pics tonight. May still add a few pieces in the round part of the well. The new floor piece should be here Thursday.



[Scamih]

That’s the plastic we found to make guards out of.



[Scamih]

I think I’m going to order a couple of these



[WagginTail]

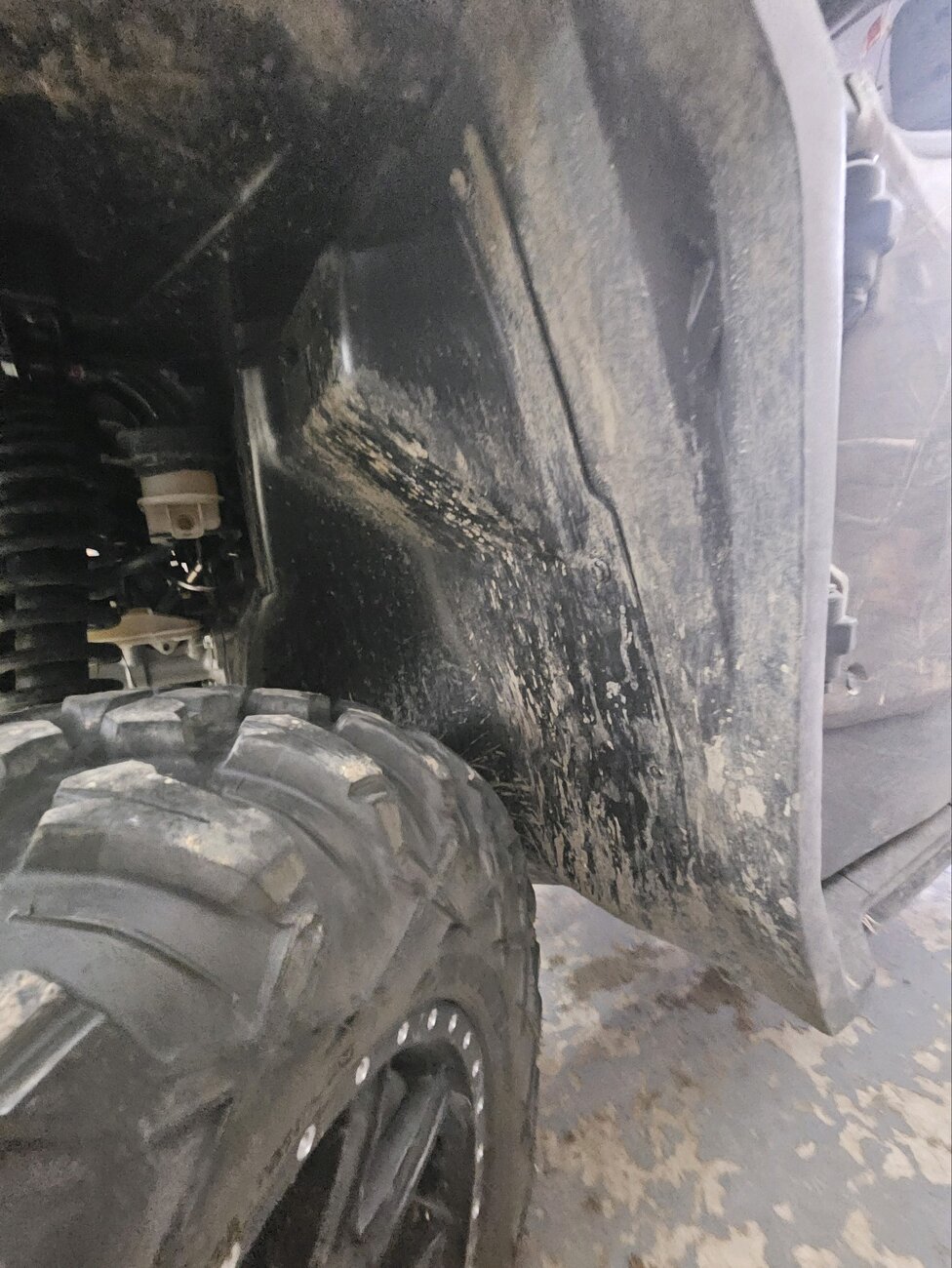

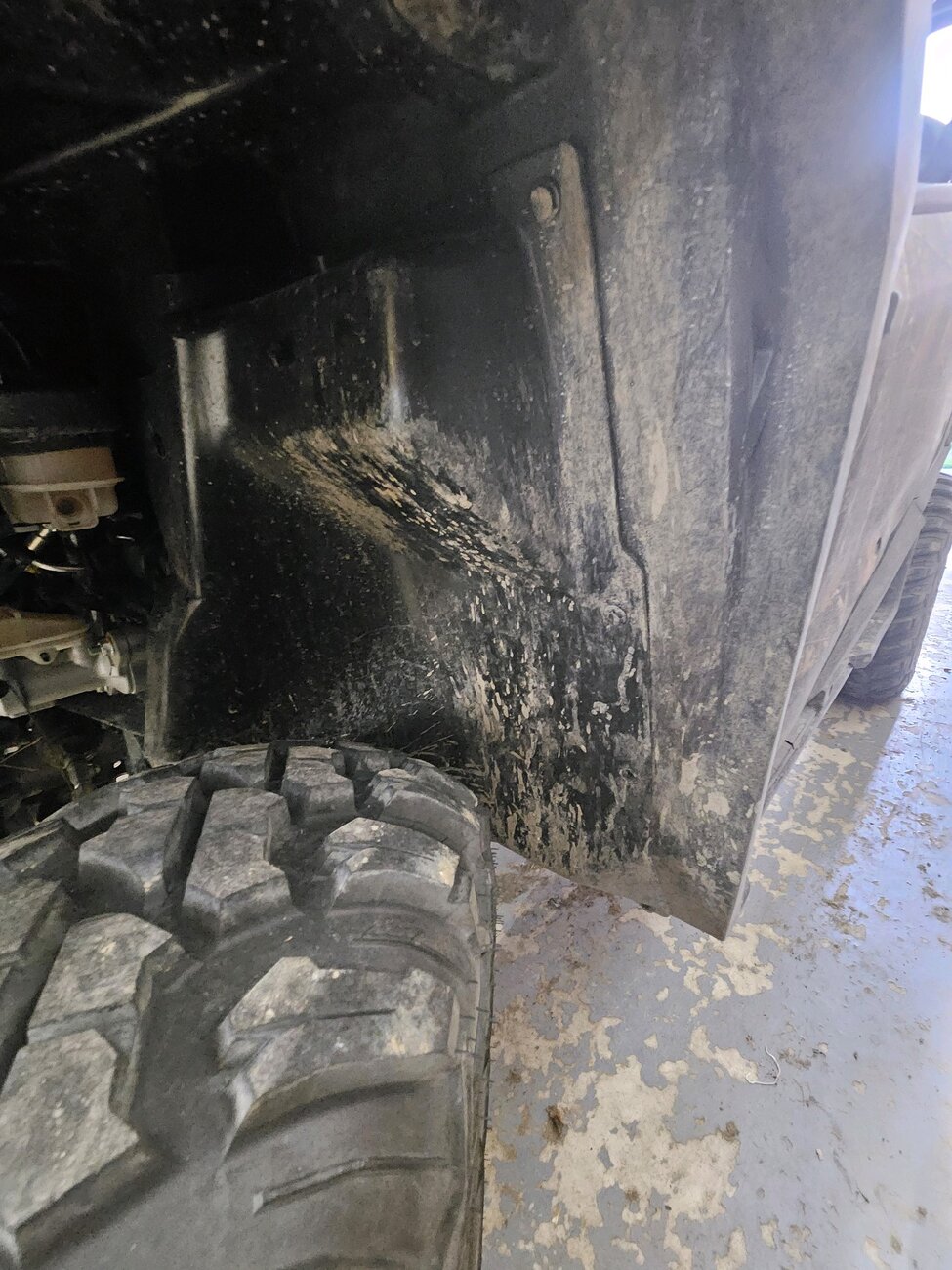

View attachment 434622View attachment 434623
I think I’m going to order a couple of these

That's what comes on the newer model pioneers from factory?



[Scamih]

Yes. I’ve ordered them I’ll share pics once I get them.



[Scamih]

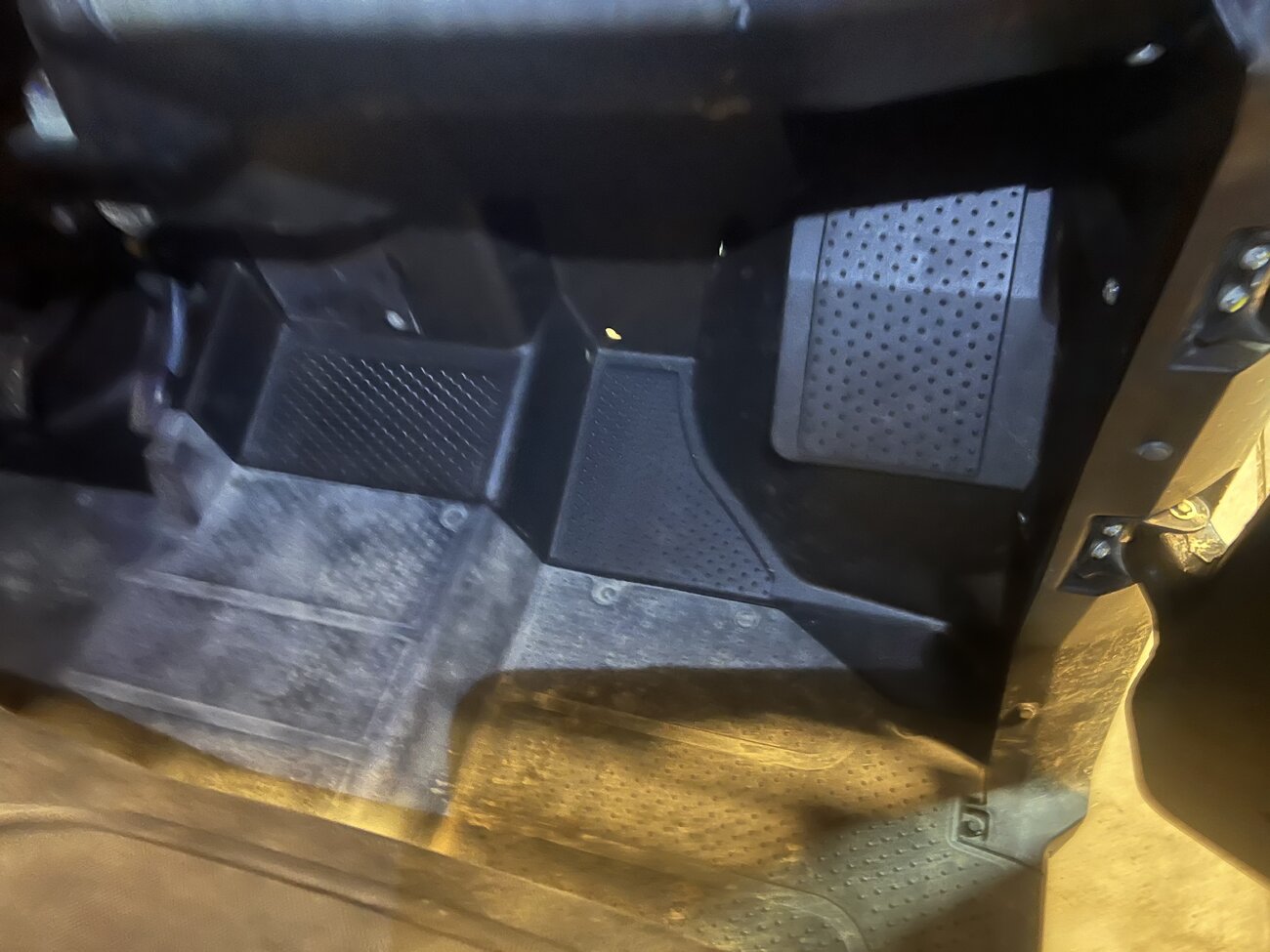

Phase 1 complete take your time need a 5mm allen, 10mm socket, tool to pull clips Don’t forget there is one clip on each side of fender we’ll on outside. Took a couple hours. You have to take the floor out to get this piece out. I watched a video on YouTube and he basically just said the things I typed. I found the part for like 130 but they were out of stock. Ended up paying 190ish from Motorsport. Shipped quick.



[Scamih]

Phase 1 complete take your time need a 5mm allen, 10mm socket, tool to pull clips Don’t forget there is one clip on each side of fender we’ll on outside. Took a couple hours. You have to take the floor out to get this piece out. I watched a video on YouTube and he basically just said the things I typed. I found the part for like 130 but they were out of stock. Ended up paying 190ish from Motorsport. Shipped quick. View attachment 435016

Notice the new piece already has the holes for the addon inner fender liner that comes stock on 22 and above. I have those ordered.



[chucksmith0706]

You could add the 22+ fender liners. They are fairly strong plastic that are smooth and covers the nooks and crannies that can catch the end of a stick and deflect it

Have the part number for these?


Sent from my iPhone using Tapatalk



[ODAMO]

Have the part number for these?


Sent from my iPhone using Tapatalk

Not off hand but Partzilla can help out there. They have good parts diagrams.



[Scamih]

FENDER, R. (INNER) Honda Item #61880-HL4-AK0



[Scamih]

Parts shipped today I’ll post pics early next week.



[Scamih]

This is what I ordered and cost. I don’t think I needed bolt flange but it was in diagram.



[Scamih]

If this all works I’ll start a new thread with fix and give all of the credit to @ODAMO. It was his idea. I’m not sure if we can stock parts in store but I think a lot of people with 16-21 pioneers would gladly buy this kit.



[ODAMO]

WoW. Thanks for the accolades. Honda came up with it, hopefully it does the job.



[Scamih]

Honda didn’t share it with us, you did.



[ODAMO]

Honda didn’t share it with us, you did.

Does this make me an internet sensation? lol
😎
