P500 winch connection

[kosh]

I ran my power to my winch from the battery. Is there somewhere closer to the winch on my 2015 Pioneer 500 that I can connect them?



[Admin]



[trigger]

I ran my power to my winch from the battery. Is there somewhere closer to the winch on my 2015 Pioneer 500 that I can connect them?

Not unless you put in a power block. What's the issue?



[kosh]

I don't know what a power block is. However, after search this website I think I found a compromise. The positive connection is not a problem, but as it is so tight in the battery box, my negative cable is hard to tighten down. I will reattach the negative cable to the frame in a more accessible place and leave the positive attached to the battery. Removing one cable should make the battery box lid close better. Thanks for the replies.



[trigger]

I don't know what a power block is. However, after search this website I think I found a compromise. The positive connection is not a problem, but as it is so tight in the battery box, my negative cable is hard to tighten down. I will reattach the negative cable to the frame in a more accessible place and leave the positive attached to the battery. Removing one cable should make the battery box lid close better. Thanks for the replies.

Like a buss bar or fuse block, for power distribution. Instead of running all the accessories you add back to the battery, mount one of these under the hood.



[kosh]

Thanks for the information.



[Ransom]

Like a buss bar or fuse block, for power distribution. Instead of running all the accessories you add back to the battery, mount one of these under the hood.

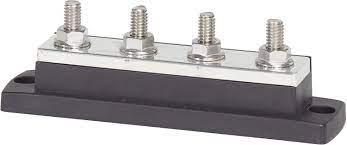

View attachment 342379View attachment 342380

I mounted one of these with 8gauge wire. Worked great. I mounted it where the owners manual goes, under the passenger seat cus there was too much voltage drop trying to run it under the hood.

the power cables to a winch are pretty thick. My question was, if anyone thinks I should stack another cable to the terminal or try to run that giant winch cable to that little bitty power box.



[Mudder]

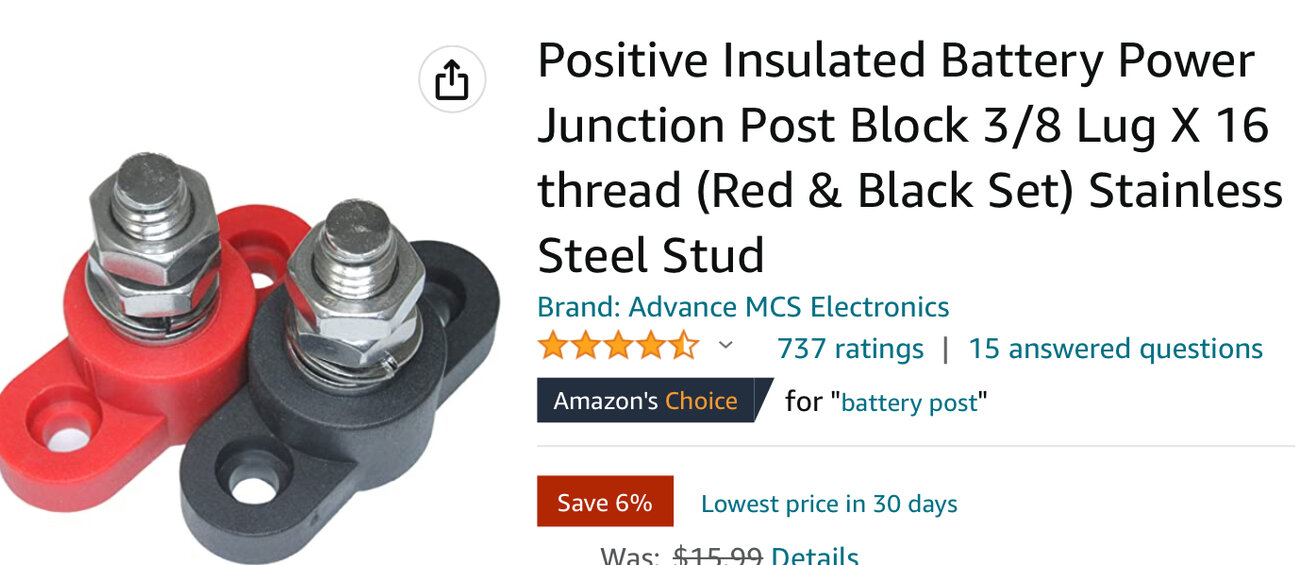

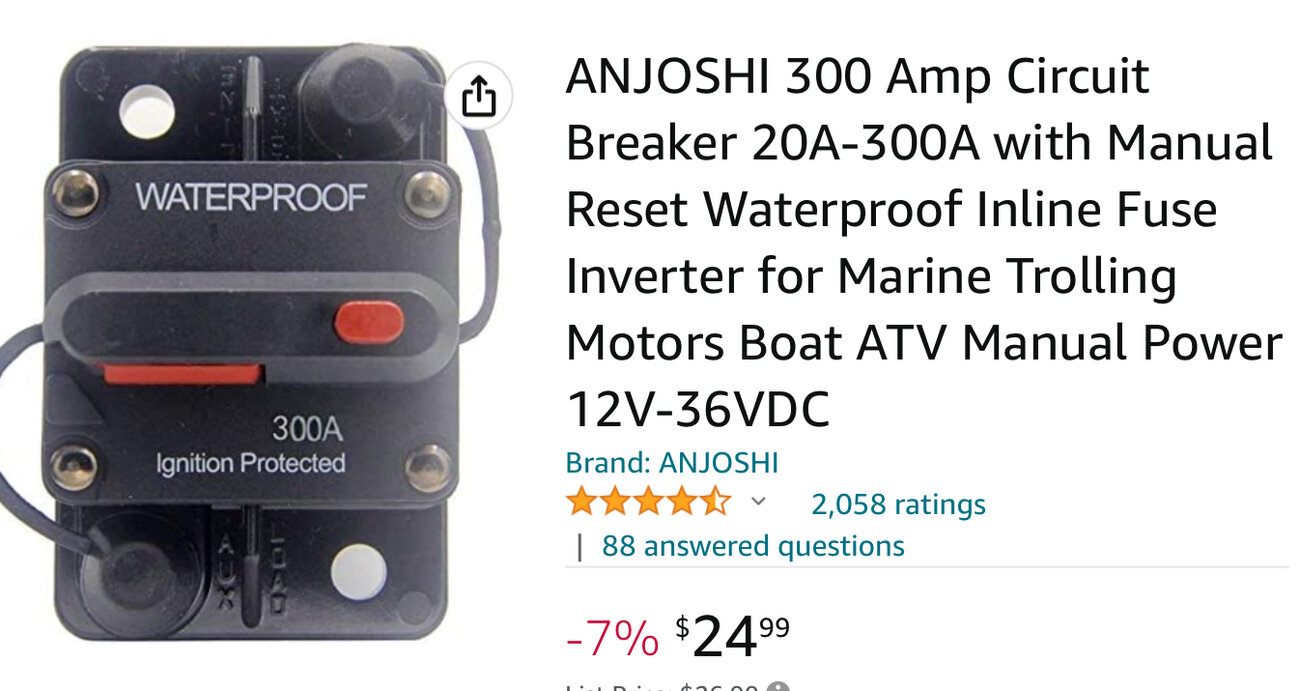

Was able to fit a 6 ga. positive in the battery box, ran to a terminal post under the hood with an inline 300 amp switched circuit breaker mounted near the battery box on the seat frame behind the passenger seat. 6 ga ground to frame under hood. Example parts.



[Ransom]

Was able to fit a 6 ga. positive in the battery box, ran to a terminal post under the hood with an inline 300 amp switched circuit breaker mounted near the battery box on the seat frame behind the passenger seat. 6 ga ground to frame under hood. Example parts.

View attachment 357369View attachment 357370

That’s great info to know!


I just wrapped this up today. Tan straight from the battery box with you. I left the inline fuse behind the seat, with make-shift cover to keep it out of the elements. Just wanted to keep it a littler higher just in case.

Was able to ground it where the seat hooks around. Saw a little bit of room there and it ended up working out nicely.

gonna secure the power block better another time. I don’t want to drill any holes, so I’m gonna be some weather proof Velcro-esque kind of stuff.



[Mudder]

That’s great info to know!


I just wrapped this up today. Tan straight from the battery box with you. I left the inline fuse behind the seat, with make-shift cover to keep it out of the elements. Just wanted to keep it a littler higher just in case.

Was able to ground it where the seat hooks around. Saw a little bit of room there and it ended up working out nicely.

gonna secure the power block better another time. I don’t want to drill any holes, so I’m gonna be some weather proof Velcro-esque kind of stuff.

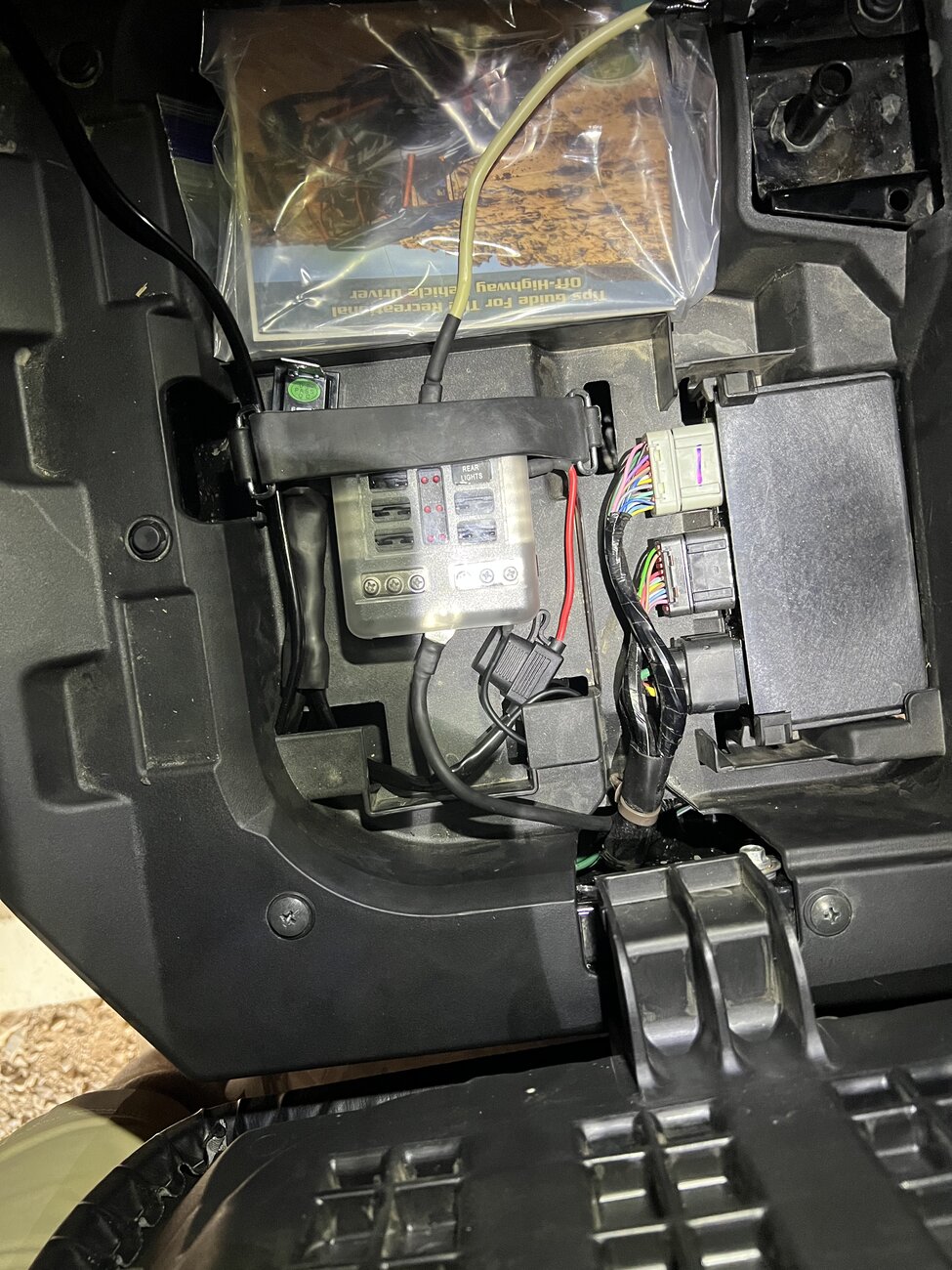

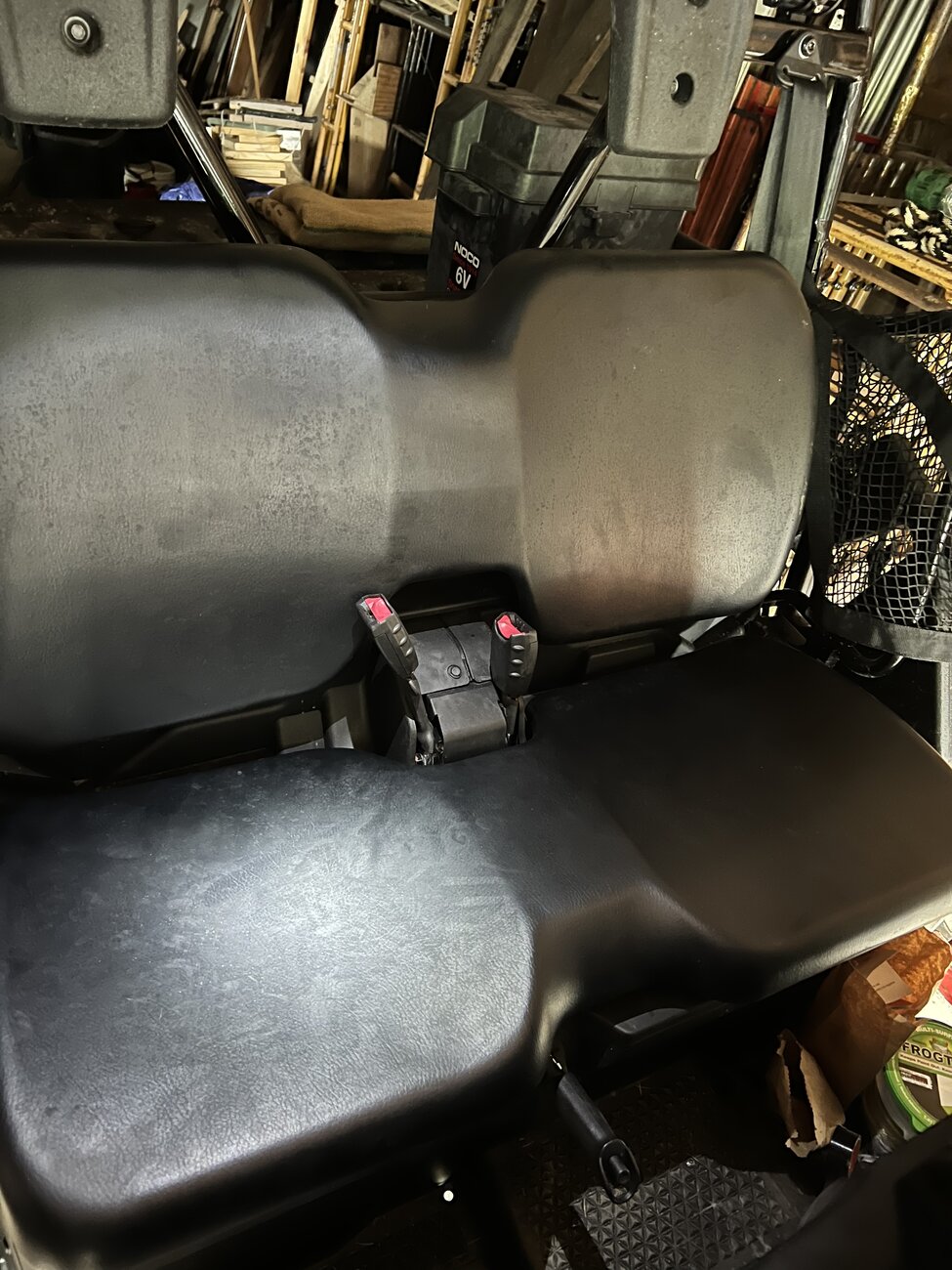

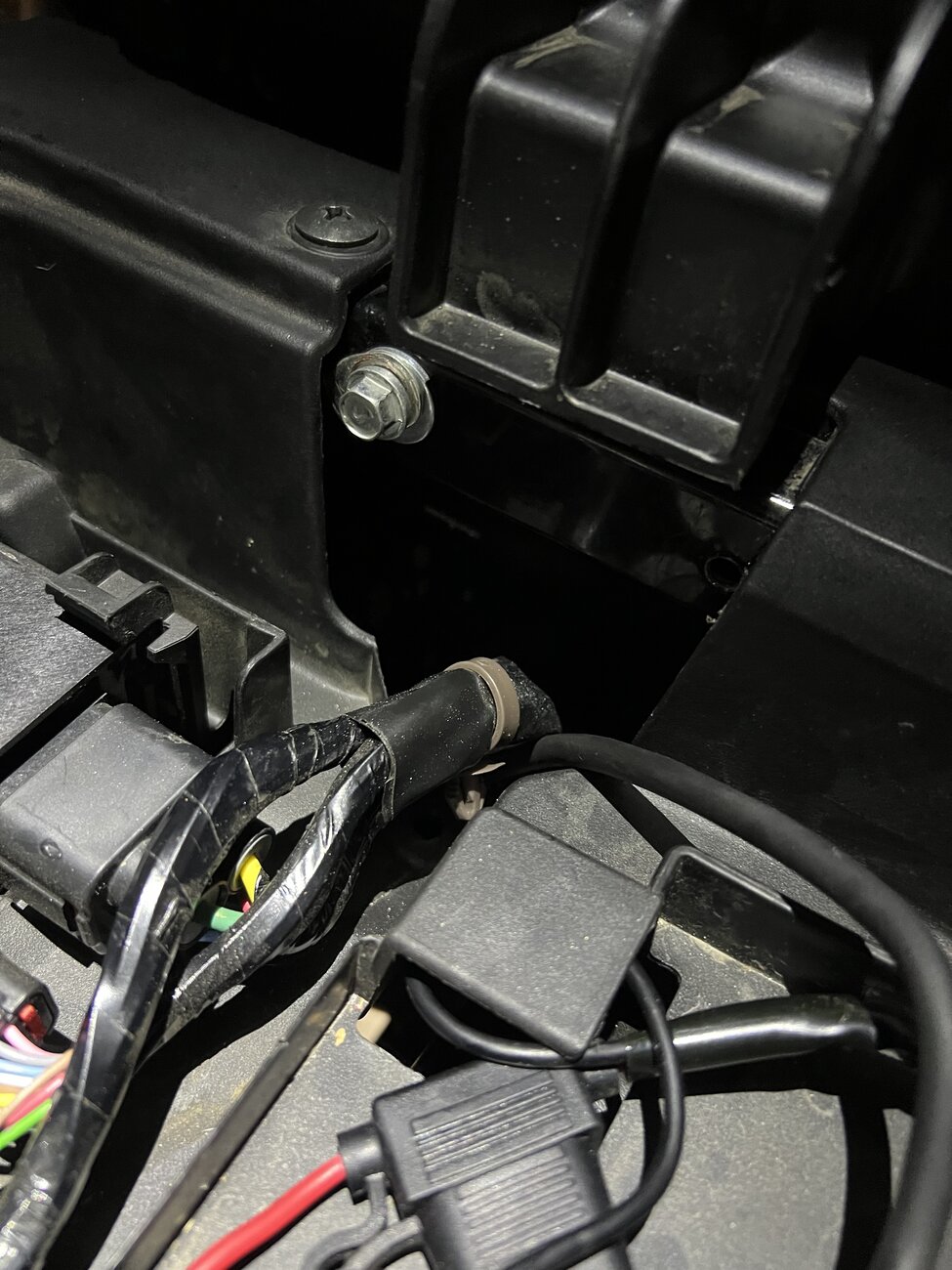

View attachment 357395 View attachment 357396 View attachment 357397

I have some exterior rated heavy duty adhesive backed velcro on hand, but still used zip ties. No issues after 5 years.



[Alan aka Davinci]

I ran my power to my winch from the battery. Is there somewhere closer to the winch on my 2015 Pioneer 500 that I can connect them?

Do you mean the relay? I put mine under the hood by the firewall.



[Ransom]

I have some exterior rated heavy duty adhesive backed velcro on hand, but still used zip ties. No issues after 5 years.

Good tip! I’ll definitely throw some on then 🍻
