P700 Two-piece windscreen and mirrors

[Tramguage1]

How do you like the Koplin mirriors? The rubber pieces on the edge of my windshield kept falling off, so I just left them off.

Sent from my SAMSUNG-SM-N910A using Tapatalk



[Admin]



[allgm1]

Koplin mirrors are fine, yes you have to reach over and move it back out after some tight trail riding (as you would with any mirror),but for the money there great.. I took that rubber off (the other side is long gone) after the picture was taken, don't need them this time of year anyway. Next winter I'm going to put self adhesive weather strip on the windshield to replace the rubber.



[Tmoose23]

I has the Honda two-piece windshield and aftermarket mirrors. They worked great, the mirrors were Siezmik.

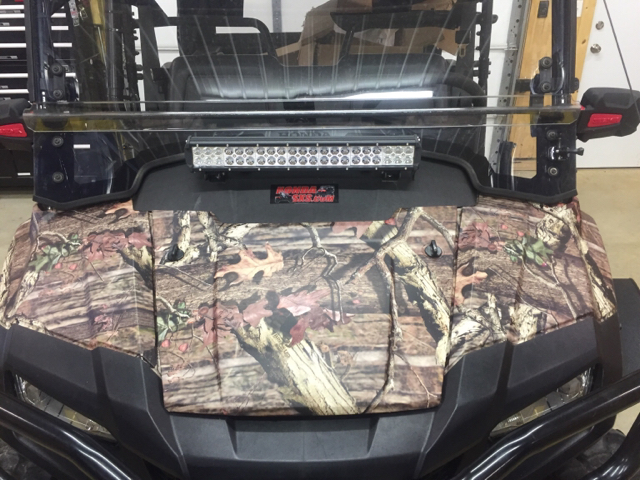

View attachment 13524


Sent from my iPhone 10s

What did you mount your light bar to?? Does it shake a lot??



[Tmoose23]

What did you mount your light bar to?? Does it shake a lot??

That was directed at Tramguage1. Sorry. Anyway, what is your light bar mounted to??



[joeymt33]

What did you mount your light bar to?? Does it shake a lot??

It's just mounted to the plastic and yes it did shake some.



[Tramguage1]

That was directed at Tramguage1. Sorry. Anyway, what is your light bar mounted to??

I used 2 9" bars and used bottom mounting screw in the two piece windshield. They worked great,no problems on the [HASHTAG]#pioneertakeover[/HASHTAG].

Sent from my SAMSUNG-SM-N910A using Tapatalk



[bigboyga]

Can y'all help me with my 2 piece windshield? It was installed when I got the 700-4 and the windshield won't stay open. I believe the knob is actually trying to screw into the pillar. It's like it us too long. Also where are the clamps supposed to be positioned? They were not tight and had slid down the pillar.

Sent from my XT1254 using Tapatalk



[bigboyga]

Sent from my XT1254 using Tapatalk



[bigboyga]

Sent from my XT1254 using Tapatalk



[bigboyga]

This is where I moved them up to. Is this right? Still the knobs won't tighten down.

Sent from my XT1254 using Tapatalk



[bigboyga]

Sent from my XT1254 using Tapatalk



[Tramguage1]

Make sure the top clamps are up high enough. I close the windshield and align the bottom with the stationary peice. Then move the lower clamps to where the sliders are down and parallel with the windshield. Also there should be a flat washer on both sides of the slider.

Sent from my SAMSUNG-SM-N910A using Tapatalk



[Tramguage1]

After you get it where you want it I tighten the clamps until there is almost no gap.

Sent from my SAMSUNG-SM-N910A using Tapatalk



[Tramguage1]

Sent from my SAMSUNG-SM-N910A using Tapatalk



[Tramguage1]

Sent from my SAMSUNG-SM-N910A using Tapatalk



[allgm1]

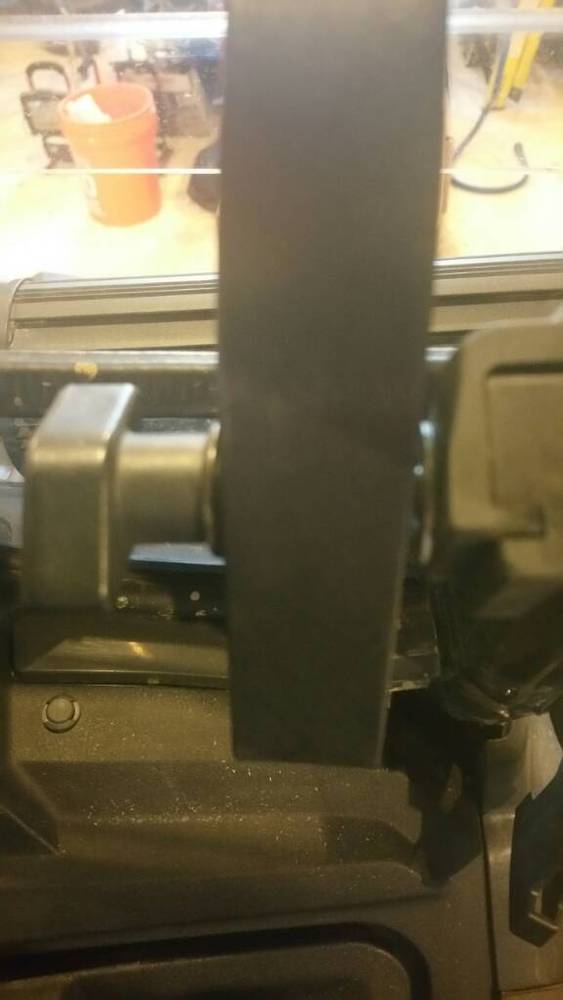

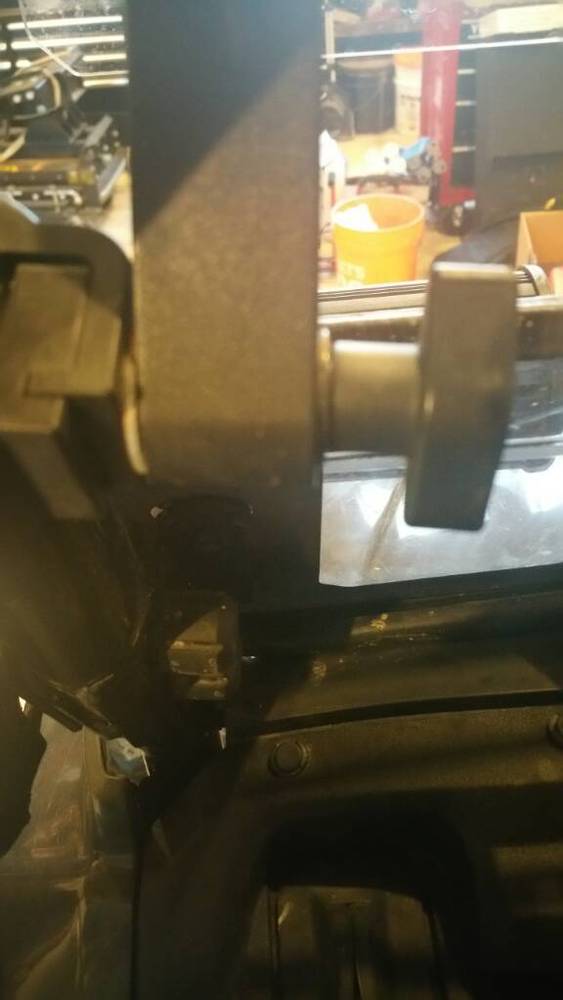

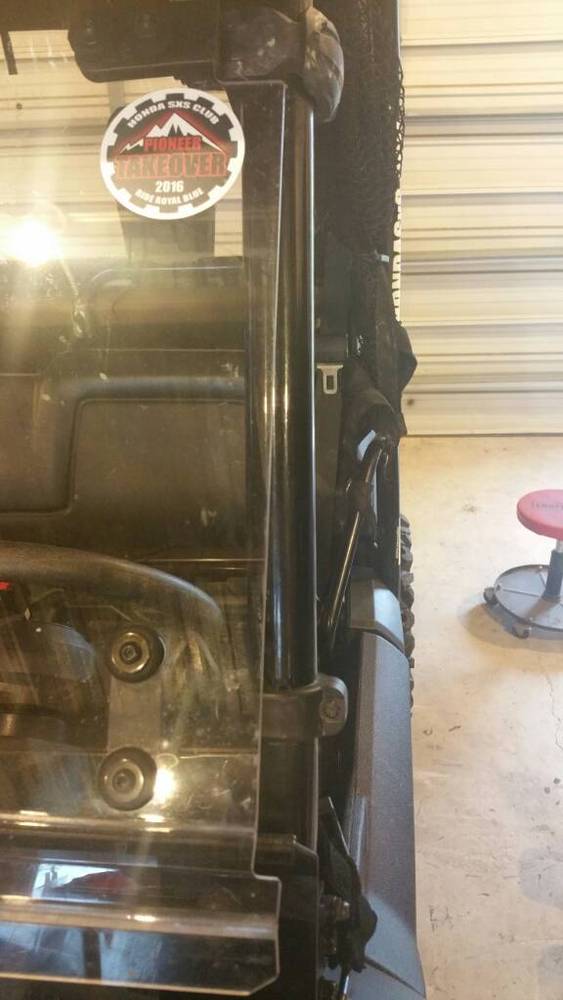

View attachment 13799View attachment 13800View attachment 13801

Sent from my SAMSUNG-SM-N910A using Tapatalk

Thats how I do it also, but I put two washers between the pillar clamp and the slotted adjuster. I can't remember if I took a little offf the end of the adjuster bolts also,but I did have the same problem as @Srbaldie did.



[Tramguage1]

Guess what I'm doing this weekend
