P500 HELP need MAP sensor wiring colors?

[DSG2]

Sorry to bother everyone but I have a slight problem on my 2020 P500. I had a rat chew my MAP sensor wires. I ordered a new plug but I can’t tell what color order to require the plug. I would really appreciate it if someone would take a picture of the color order their MAP sensor is wired.Thanks in advance!!!



[Admin]



[Hondasxs]

I'm going to check and see what I can find in the manual for you in a bit.
Once we get a pic of color layout I will add it to the item listing.



[DSG2]

I'm going to check and see what I can find in the manual for you in a bit.
Once we get a pic of color layout I will add it to the item listing.

Thanks I really appreciate it!!



[Hondasxs]

More.
*Assuming the little tab aligns with the tab.

Can you confirm the one to the left is empty on your's?



[Hondasxs]

Left to right. Latch topside.
*** Facing the connector looking at the pins **** (NOT the pin insert side.)
1, 2, 3, 4, 5
1 Empty
2 Brown with white stripe
3 Green with white stripe
4 Blue black stripe
5 Light green.



[Hondasxs]

Left to right. Latch topside.
*** Facing the connector looking at the pins **** (NOT the pin insert side.)
1, 2, 3, 4, 5
1 Empty
2 Brown with white stripe
3 Green with white stripe
4 Blue black stripe
5 Light green.

Still would like to get a visual conformation.



[Dave75]

Do not if it’s the same, but here is a P520.
This is the best photo I could take.
Used some Rodent Repellent after your story.



[Hondasxs]

Do not if it’s the same, but here is a P520.
This is the best photo I could take.
Used some Rodent Repellent after your story.

Thanks a lot @Dave75
BUT....
That is the IACV. I needed it also. so appreciate it.
The map looks like it but is about twice the size. It is actually a 5 pin connector but will only have 4 wires.
It should be in the general same location on the side of the throttle body.



[Dave75]

Thanks a lot @Dave75
BUT....
That is the IACV. I needed it also. so appreciate it.
The map looks like it but is about twice the size. It is actually a 5 pin connector but will only have 4 wires.
It should be in the general same location on the side of the throttle body.

Sh*t. Sorry about that.



[Hondasxs]

SWEET....
That matches what I found.
Appreicate it.



[DSG2]

Man guys I really really appreciate your help. So, I’m thinking left to right looking latch up mouth up…light green, blue, green white, brown and blank



[Dave75]

It’s hard to see in the photo, there does look like a blank plug for the 1st pin on the right side.
Please post photos of your work.
Hope you get it back on the trail soon.



[DSG2]

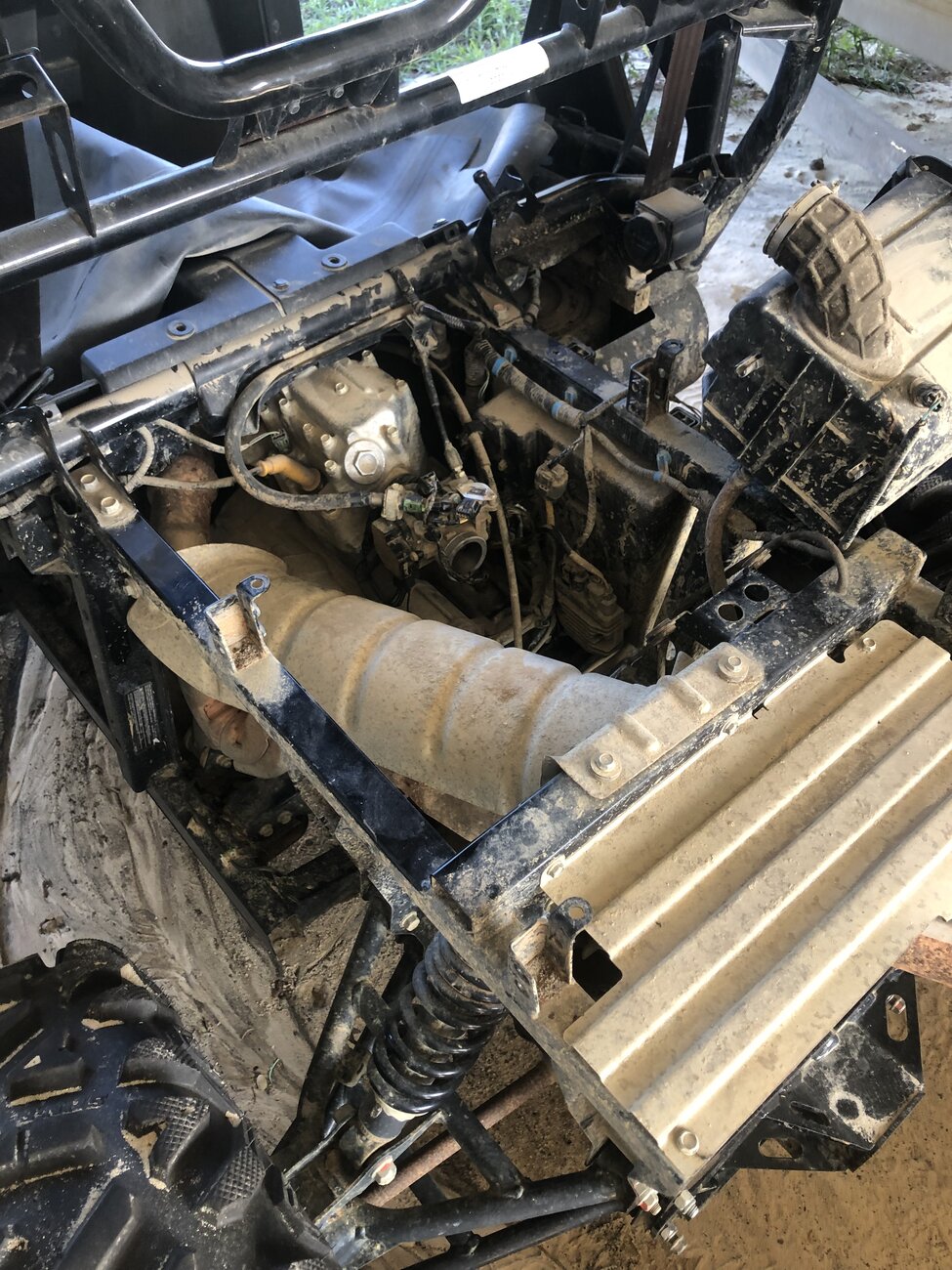

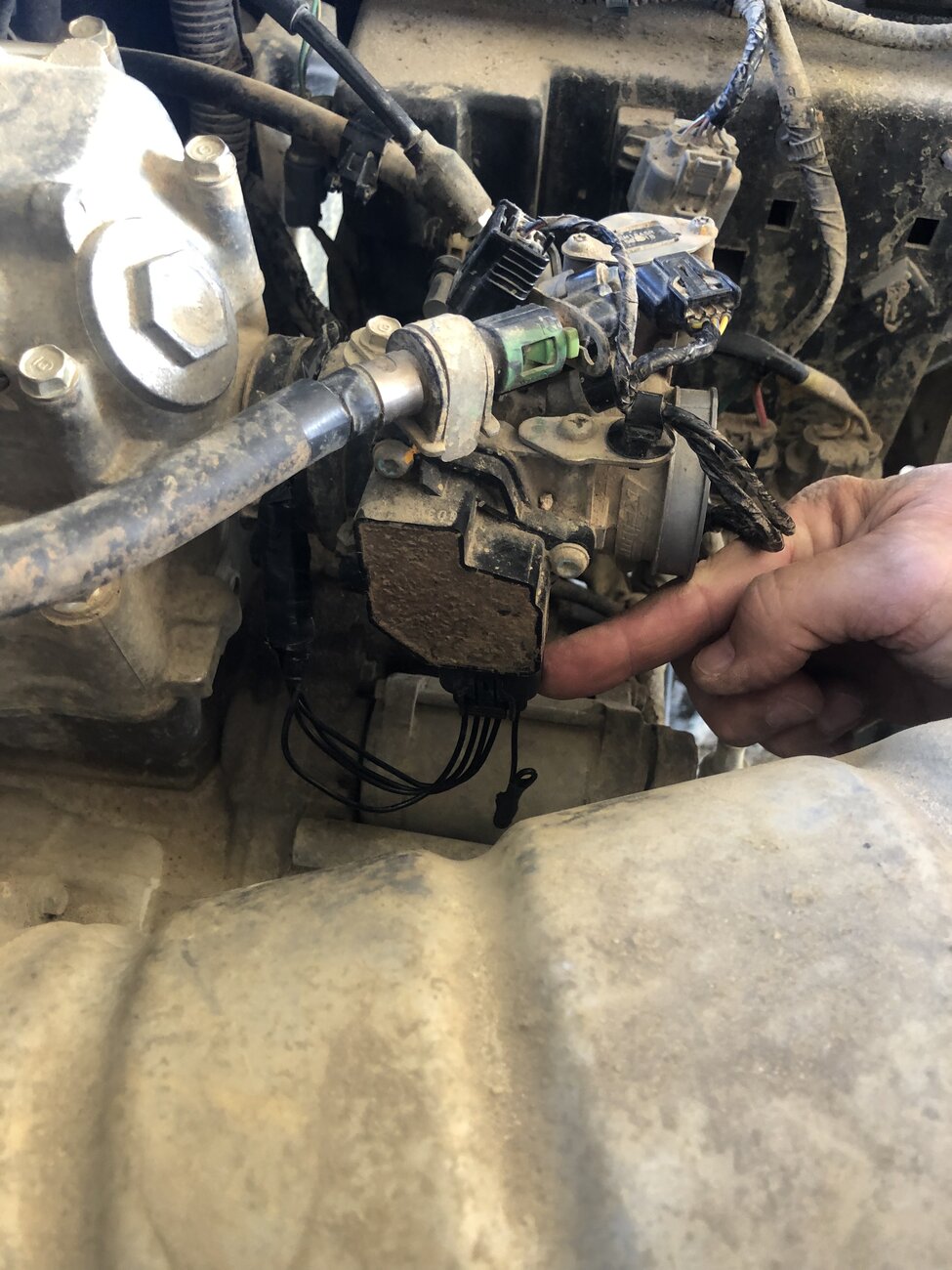

Guys she is back together and running like new! Thank you guys so much!



[Dave75]

Guys she is back together and running like new! Thank you guys so much!

View attachment 330498 View attachment 330499

Good job. Thanks for posting photos of your completed work.
