I am considering making my own snorkel for my 700. Here's what I know I need...
1. 2" PVC
2. 2" small Rubber Connection for connecting snorkel to air box.
3. Several Clamps
My question is can someone provide me how many joints and what degree of each I need? I want the snorkel to come up by the passenger seat belt. I have harnesses so the spot is empty.



[Admin]



[joeymt33]

I am considering making my own snorkel for my 700. Here's what I know I need...
1. 2" PVC
2. 2" small Rubber Connection for connecting snorkel to air box.
3. Several Clamps
My question is can someone provide me how many joints and what degree of each I need? I want the snorkel to come up by the passenger seat belt. I have harnesses so the spot is empty.

I have already sold mine or I would help you. I can't remember what pipe sizes I bought. I do remember that I used a rubber pipe coupling to join the PVC pipes to the stock intake. Also remember that when I came up by the seatbelt I used a 90° long sweep from the electrical conduit section.





Quote by jackal: "we won't be doing any extreme trails".



[LandPioneer]

I have already sold mine or I would help you. I can't remember what pipe sizes I bought. I do remember that I used a rubber pipe coupling to join the PVC pipes to the stock intake. Also remember that when I came up by the seatbelt I used a 90° long sweep from the electrical conduit section.





Quote by jackal: "we won't be doing any extreme trails".

Thanks Joey, I appreciate it! I talked with someone online that said they thought it was 2-90's and 4-45's. Figure I'll start there and return any I don't use.



[joeymt33]

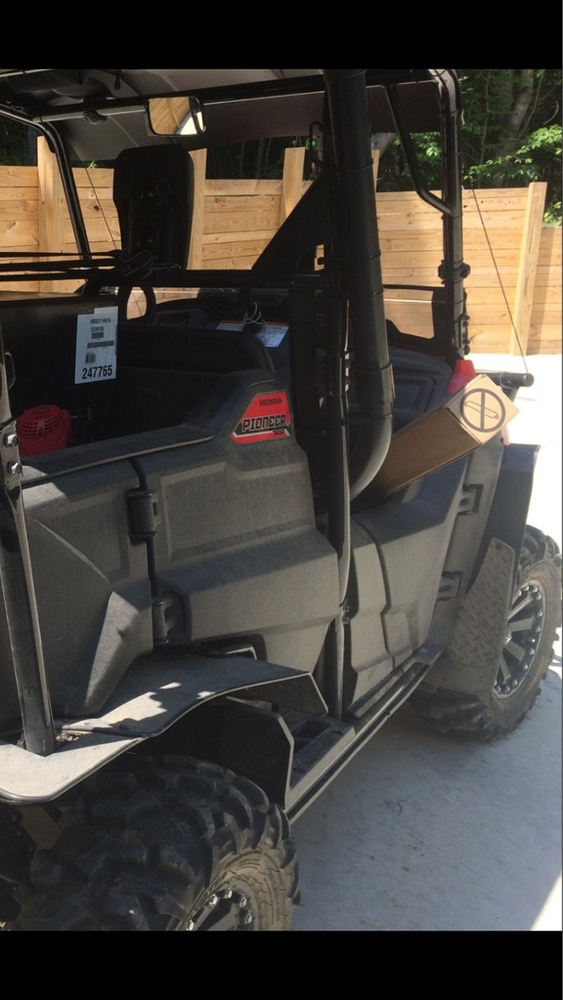

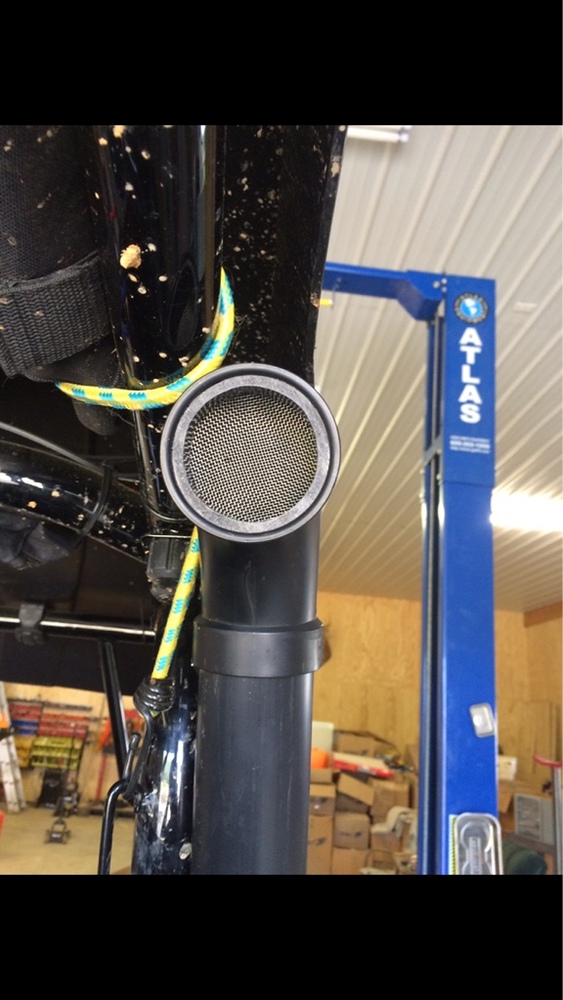

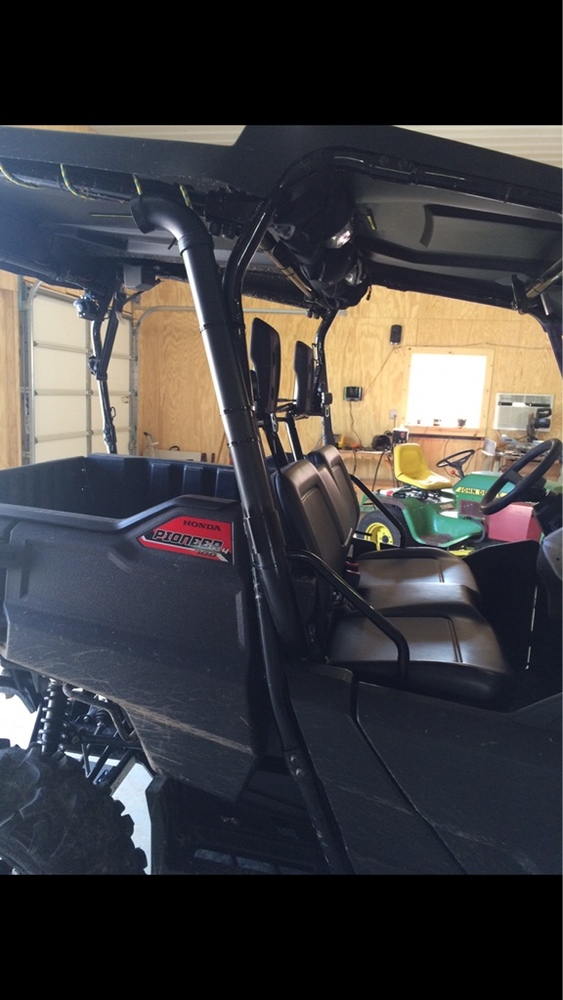

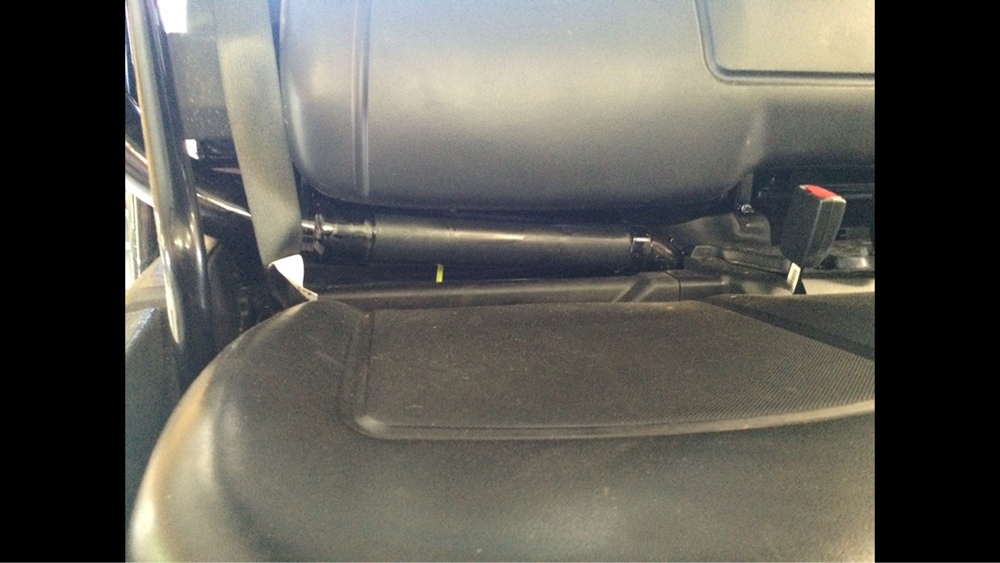

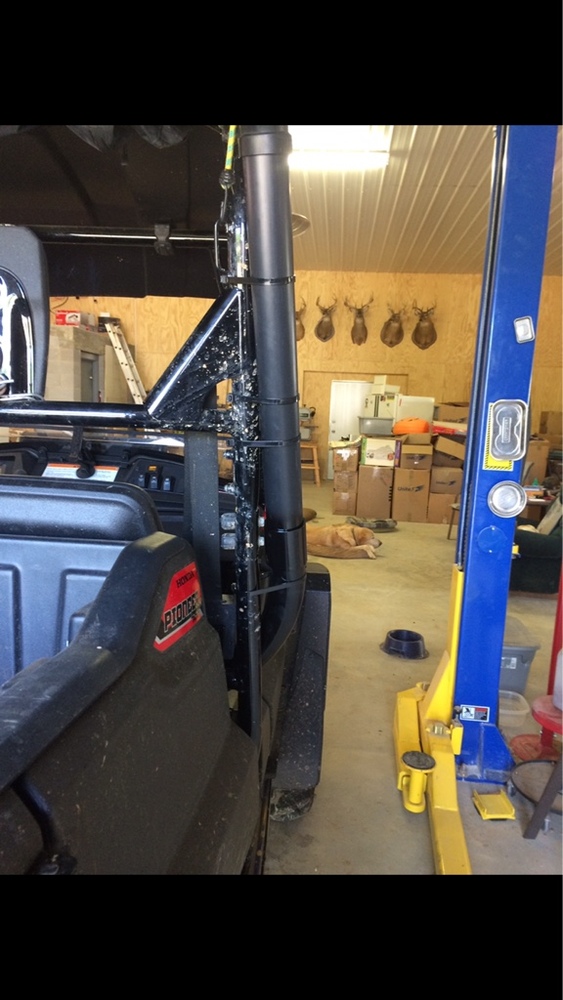

You may have already seen these pictures before but I went ahead and search for any pictures that I have, this is it.



[LandPioneer]

You may have already seen these pictures before but I went ahead and search for any pictures that I have, this is it.

View attachment 23572

View attachment 23573

View attachment 23574

View attachment 23575

View attachment 23576

Thanks the more pictures I get the less likely I am to do it more than once! Lol



[LandPioneer]

Update: I finished the piecing together of my new snorkel last night. I'll try to get some pictures up soon. I hope to get it glued and painted this evening.



[Tflynn]

Update: I finished the piecing together of my new snorkel last night. I'll try to get some pictures up soon. I hope to get it glued and painted this evening.

Looking forward to seeing what you came up with



[LandPioneer]

Added some sealer and applied paint tonight. I'm going to let it sit for a couple of days before installing. The only reason is I'm busy the next couple of days Lol.
I'll get pictures of the painted product up soon.
