P500 P520<> Heated/ RZR SEATS using OEM Lower Mounts & Rubber Bushings

[pappyo]

Requires Welding
Add & locate cross piece with Bent to Fit <> OEM Front Lower SEAT Mount
Add & locate piece flat plate with Hole for <> OEM Lower Rubber Bushing
Add & locate a tab with Hole ( uses OEM inner plastic under seat BOLT locates & holds seat in place )
Can lower 1in.
Cut the 1in. square Off & replace with 1/4x1in. flat stock ( then add above described )
Pictures give best description :



[Admin]



[KyGal83]

I am curious about these seat @pappyo. Do you still have them in your buggy?



[pappyo]

Gal83 : Ref rzr seats.

Yes still in both P500 and P520 since New

Back & Seat -- "Bolsters" -- help hold you in place -- take most of the side to side Rock & Roll out.
Have done three sets of rzr seats in P500/520 ( ALL using same mounting method & with Heat )

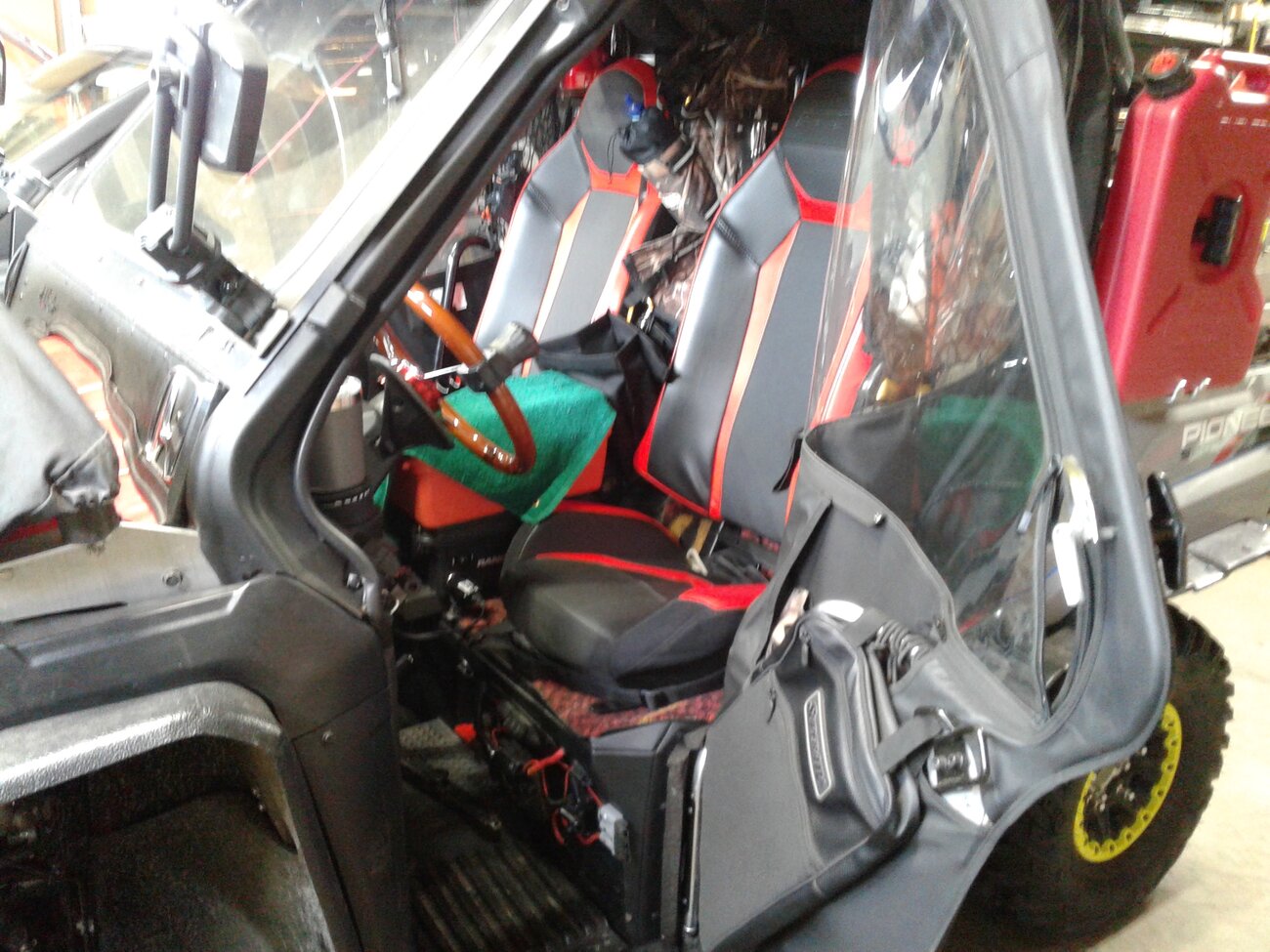

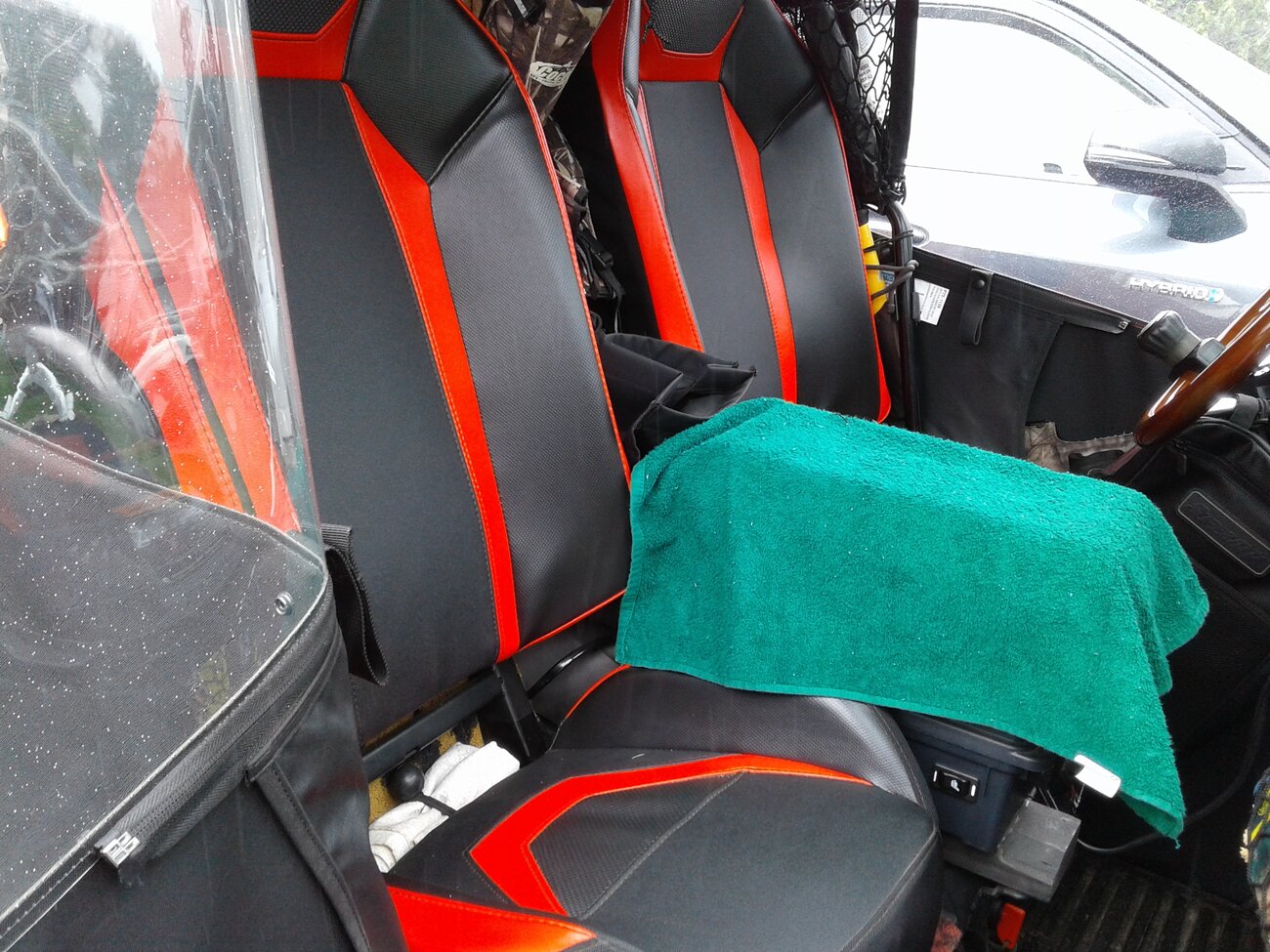

Red Seats in pictures are 3rd generation rzr 2020 & up ( more comfortable than earlier gen. seats )
Purchased online: Los Vegas Nevada $331.00 shipped.to N.Y.
Another$50.00 for heaters
Hid the heater wires in a small ammobox between the seats.
Larger Ammobox on top held to lowerbox with push pins "console / storage."
Check for other posts on rzr seats in P500 ( trigger & others </> with different mounting method & console ideas.
Attached some pictures for visual help.

I am curious about these seat @pappyo. Do you still have them in your buggy?

Did sell ( 1 set 2nd. gen ) to a local guy </> he has since sold his P500.



[KyGal83]

Gal83 : Ref rzr seats.

Yes still in both P500 and P520 since New

Back & Seat -- "Bolsters" -- help hold you in place -- take most of the side to side Rock & Roll out.
Have done three sets of rzr seats in P500/520 ( ALL using same mounting method & with Heat )

Red Seats in pictures are 3rd generation rzr 2020 & up ( more comfortable than earlier gen. seats )
Purchased online: Los Vegas Nevada $331.00 shipped.to N.Y.
Another$50.00 for heaters
Hid the heater wires in a small ammobox between the seats.
Larger Ammobox on top held to lowerbox with push pins "console / storage."
Check for other posts on rzr seats in P500 ( trigger & others </> with different mounting method & console ideas.
Attached some pictures for visual help.


Did sell ( 1 set 2nd. gen ) to a local guy </> he has since sold his P500.

View attachment 393757 View attachment 393758 View attachment 393759 View attachment 393760

I will look those up thanks!

Wow!! You have put alot of work into that!! Is that a wood grain steering wheel I spy also?



[pappyo]

Gal83:
Ref: 14in.wood grain steering wheel with NRG Adapter.
Moved steering wheel Back about 1-1/2 inches.

Being a New member of the "Senior" support group S~O~S
( there is a age requirement not sure what that is ) as Time rolls on automatically happens.
SLOWER~OLDER~SMARTER ( well atleast trying ) do what I can to make the machine comfortable to drive.
Quite a few S~O~S Members on the Honda Pioneer forum.

I will look those up thanks!

Wow!! You have put alot of work into that!! Is that a wood grain steering wheel I spy also?

Included a picture of my 1st.SXS ~ I made back in the 70's rode ~ until 1986 Honda came out with TRX350 4X4
1st. Factory SXS 2005 ploaris ranger 500 6x6
