Check engine light question, 10 long 1 short.

[AriOsman]

2016 Honda Pioneer 1000. Getting a flashing check engine sequence - 10 long blinks followed by 1 short blink. Any idea what this code is or what to check/replace?

Machine starts but has a high, pulsating idle. After warming up, it dies under load (throttle). Like anything, I'm checking air/spark/fuel. Here's what I've been able to diag or address so far.

-replaced fuel injector plug/wire (x2) - they looked ratty. All other wiring/plugs look good
-replaced battery
-checked grounds
-checked/removed air cleaner. All clean and didn't affect idle.
-removed gas cap. Didn't affect idle.



[Admin]



[Neohio]

Have you had the recall done on the throttle pedal?



[Hondasxs]

The MAP sensor on the side of the throttle body is known to have wiring issues simular to the injectors.

If that's the issue, I have a repair kit in the club store.

5 pin MAP sensor connector for Honda Pioneer, Honda Talon. Pigtail or Pin kit.

It's common for the MPA sensor connector to cause problems with many Pioneer models. Mostly, the wire breaks and is non visible. Only once the connector is cut off at the head does the wire fall apart. We offer 2 kits now. Pigtail kit will be 6 inches of 18 awg wire as shown. All wires will be...

store.hondasxs.com



[AriOsman]

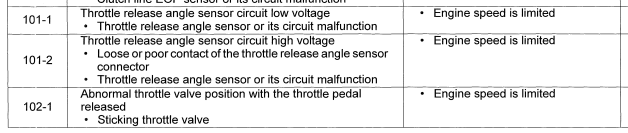

View attachment 453452

Have you had the recall done on the throttle pedal?

I have not. What's the protocol with a recall? Reach out to the local dealership like an automobile/bring it in for service?



[Neohio]

I have not. What's the protocol with a recall? Reach out to the local dealership like an automobile/bring it in for service?

yep.



[Hondasxs]

@Neohio,
Wasn't the recall just for a sticking bolt on the peddle, just replacing it with a sealed re-design?
Not really changing sensors or anything.
While I do recommend this recall. I dont think its related to this issue.
But I guess it could be stuck and not returning 100% or something.
Spray the peddle hinge point with some WD-40 and work it in to eliminate any hangup.



[Neohio]

@Neohio,
Wasn't the recall just for a sticking bolt on the peddle, just replacing it with a sealed re-design?
Not really changing sensors or anything.
While I do recommend this recall. I dont think its related to this issue.
But I guess it could be stuck and not returning 100% or something.
Spray the peddle hinge point with some WD-40 and work it in to eliminate any hangup.

Yes, pedal is replaced. I was thinking this might be sticking, which is what the recall was for. so if lets say the pedal is at 50% throttle when turning key on, it may default and give a code.
But I would definitely get the gas pedal recall, and any other open recalls addressed ASAP.
The steering rack recall got me during a ride.
